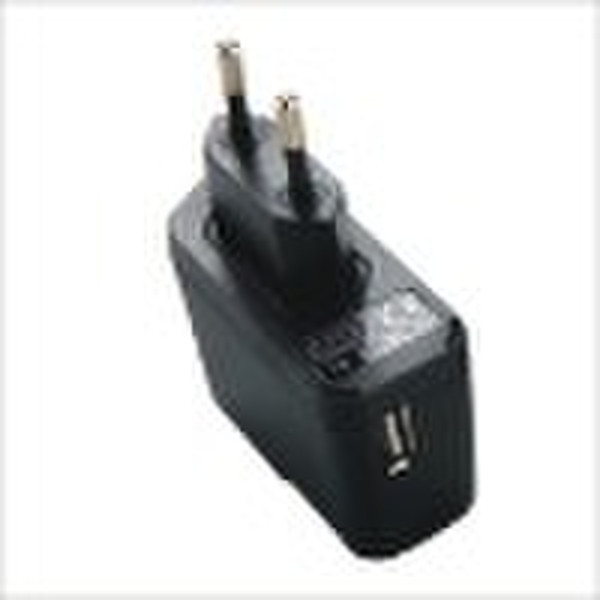

6W Switching power supply wuth USB connect
original price: 1,60 USD
Johnson Pan
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | YInli |
| Model Number | YLS006B-XYYYZZZ |
| Input Voltage | 100-240 VAC |
| Output Voltage | 3-24VDC |
| Output Current | 1.5A MAX |
| Output Power | 1 - 50W |
| Output Type | Single |
Model: YLS006B-XYYYZZZ(USB output type) Safety standard: UL60950-1 CSA C22.2 NO.60950-1; IEC60950-1; UL60065; IEC60065 FCC Part 15, EN55022, EN55024. Green product: Lead free process Eu Directive 2002/95/EC “RoHs” Eu Directive 2002/96/EC “WEEE” Meet CEC level V , energy star and ERP requirements Electrical performance AC/DC switching power supply provides 0W-6W of continuous output power The output voltage from 3v to 24V,The current is 1.5Amp. Max for DC cord output type; The output voltage 5V,The current is 1.2Amp. Max for USB output type. Wide input voltage: 100 to 240V AC, 47 to 63Hz Stand and main AC power Plug (EU UL UK SAA CCC PSE KC--------) output connectors: DC cord and USB type. Environment characteristics: Operation temperature: 0 to 40 degree Operating humidity: 10 to 90% RH Storage temperature: -20 to 80 degree Storage humidity: 10 to 95% RH Cooling: natural cooling Protection Short-circuit protection ,Over current protection Units are 100% burned in and tested Insulation :Class II External datas: Weight Ref 80g Size: L*W*H=63*27.5*43mm
Delivery terms and packaging
Packaging Detail: In standard exported package ( if necessary, photos would be provided together with quotation.) Delivery Detail: 15-20 days after the receipt of 30% deposit or L/C at sight
Port: Yantian port in Shenzhen
