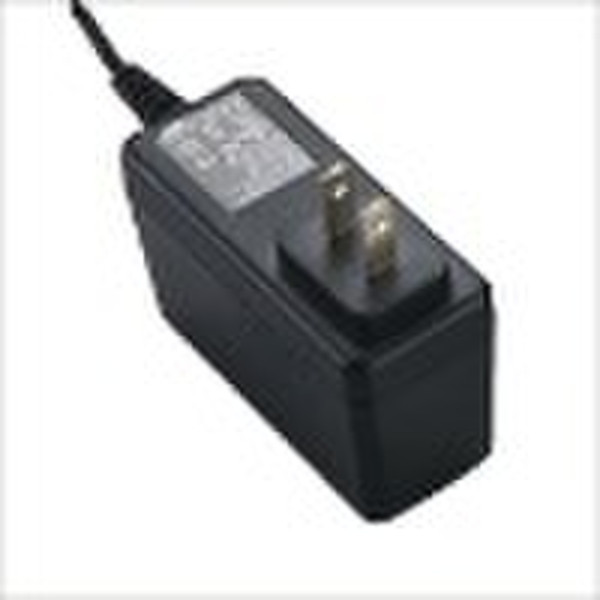

30W switching power supply UL CUL

Model: YLS0301w-Zxxxyyy (w=A,B,C,D: ‘A’ is horizontal directly plugin type enclosure; ‘B’ is vertical directly plugin type enclosure; ‘C’ is desktop type enclosure with appliance inlet; ‘D’ is desktop type enclosure with fixed power cord, when ‘w’ = ‘C’ the ‘z’ = blank) YLS0301-X120200 YLS0301-X240100 Safety standard: UL60950-1 CSA C22.2 NO.60950-1; IEC60950-1; UL60065; IEC60065; IEC61558-1; AS/NZS60950-1, CISPR 22 ; UL1310; FCC Part 15, EN55022, EN55024. Green product: Lead free process Eu Directive 2002/95/EC “RoHs” Eu Directive 2002/96/EC “WEEE” Meet CEC level V , energy star and ERP requirements Electrical performance AC/DC switching power supply provides 0-30W of continuous output power The output voltage 5-24V,The current is from 0.1 to 4.0 Amp. Wide input voltage: 100 to 240V AC, 47 to 63Hz Stand and main AC power Plug, power cord(EU UL UK SAA CCC PSE KC--------) or inlet(IEC320 C8). output connectors: DC cord Environment characteristics: Operation temperature: 0 to 40 degree Operating humidity: 10 to 90% RH Storage temperature: -20 to 80 degree Storage humidity: 10 to 95% RH Cooling: natural cooling Protection Short-circuit protection ,Over current protection Units are 100% burned in and tested Insulation :Class II External datas: Wall-plug type (“A” enclosure) : Wall-plug type (“B” enclosure) : Weight Ref 180g Weight Ref 180g Size: L*W*H=83*50*32mm Size: L*W*H=82*34*51mm Desktop type (“C” enclosure) : Desktop type (“D” enclosure) : Weight Ref 170g Weight Ref 250g Size: L*W*H=96.5*49.5*33mm Size: L*W*H=96.5*49.5*33mm
