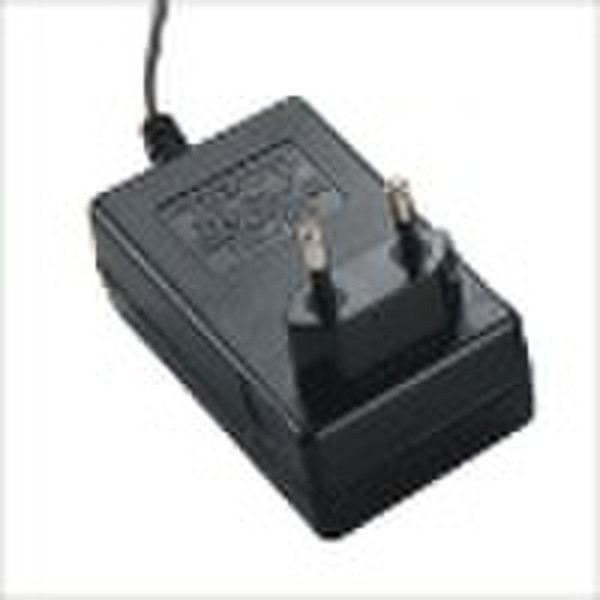

24W Switching Power supply CE GS
original price: 3,20 USD
Johnson Pan
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | Yinli |
| Model Number | YL20W-xxxZ-yyy |
| Input Voltage | 100-240VAC |
| Output Voltage | 4.5V -24V |
| Output Current | 3.0 A Max |
| Output Power | 1 - 50W |
| Output Type | Single |
Model: YL20W-xxxZ-yyy(Wall-plug type) Safety standard: UL60950-1 CSA C22.2 NO.60950-1; IEC60950-1; UL60065; IEC60065; GB4943 FCC Part 15; EN55022, EN55024; GB9254, GB17625.1; K60950-1; J60950-1, J55022 Green product: Lead free process Eu Directive 2002/95/EC “RoHs” Eu Directive 2002/96/EC “WEEE” Meet CEC level V , energy star and ERP requirements Electrical performance AC/DC switching power supply provides 0W-24W of continuous output power The output voltage from 4.5V to 24V,The current from 1.0 to 3.0Amp. The model YL20W-240K-100(24V 1.0A for K60950-1 safety standard) The model YL20W-xxxJ-yyy series output voltage 15-30V, input power is 30-50VA/50-70VA(for J60950-1, J55022 safety standard). Wide input voltage: 100 to 240V AC, 47 to 63Hz Stand and main AC power Plug or power cord(EU UL UK SAA CCC PSE KC-----------) output connectors: DC cord Environment characteristics: Operation temperature: 0 to 40 degree Operating humidity: 10 to 90% RH Storage temperature: -20 to 80 degree Storage humidity: 10 to 95% RH Cooling: natural cooling Protection Short-circuit protection ,Over current protection Units are 100% burned in and tested Insulation :Class II External datas: Wall-plug type: Desktop type Weight Ref 155gWeight Ref 200g Size: L*W*H=83*50*32mmSize: L*W*H=83*50*32mm
Delivery terms and packaging
Packaging Detail: In standard expoorted package, ( if necessary, some photos will be provided together with quotation.) Delivery Detail: 15-20 days after the receipt of 30% deposit or L/C at sight.
Port: Yantian port in Shenzhen
