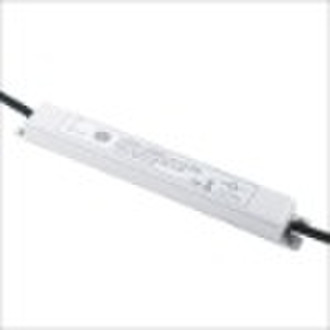

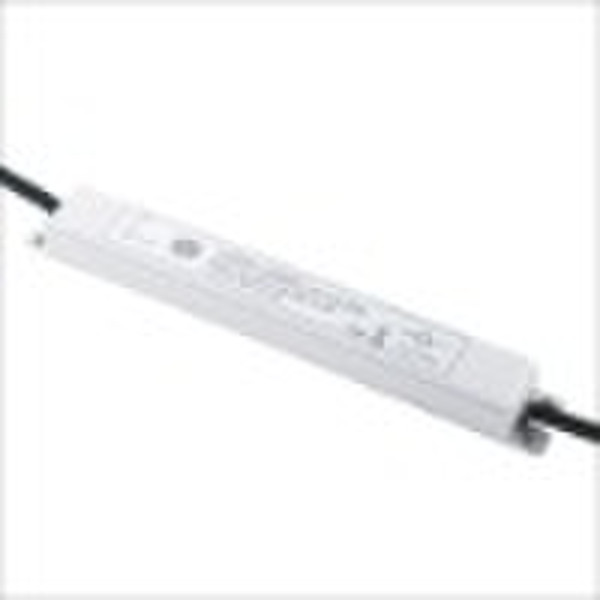

18W LED power supply
original price: 8,00 USD
Johnson Pan
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | Yinli |
| Model Number | YLS0182-Lxxxyyy |
| Input Voltage | 100-240VAC |
| Output Voltage | 15-40V |
| Output Current | 0.3-1.0A |
LED constant current driver(Outside-set product series) Specification: High efficiency, Low consumption, save energy, friendly environment(meet “RoHS”, “WEEE”); High stability and low ripple and improve and increase light efficiency and decrease light attenuation, long life, (MTBF 100000hours);Open,Short,Overload,Overcurrent protection; Meet to safety standard and EMC isolated. Application: Suitable for variety of downlights, spot lamp, bulb lamp, tube and so on. Product parameter: (Work Temperature: -25°C - 55°C) Part No.MAX PowerInput VoltageOutput VoltageOutput CurrentEF.PF.Size(L*W*H)mmYLS0011-L0350351w100-240VAC3-5V0.3-0.35A60%N/A27.8*21.5*19YLS003D-LXXXYYY3W100-240VAC5-12V0.7A/0.35A65%N/A37.5*26.5*21YLS0075-LXXXYYY5w100-240VAC21-28V0.35A70%optional80*40*22.5YLS0101-LXXXYYY10W100-240VAC15-40V0.3-0.7A70%optional100.5*39*20.5YLS0182-LXXXYYY18W100-240VAC15-40V0.3-1.0A80%0.85MIN150*34*25YLS0301-LXXXYYY30W100 240VAC12-54V0.6-2.5A82.5%0.85min109*46*26.2YLS0302-LXXXYYY30W100 240VAC12V-54V0.6-2.5A82.5%0.85min160*45*30YLS0601-L12050060W 100 240VAC 12V-54V0.7-5.0A85.0%0.85min181.5*61*35
Delivery terms and packaging
Packaging Detail: In standard exported package. Delivery Detail: 15-20 days after the receipt of 30% deposit or L/C at sight
Port: Yantian port in Shenzhen
Payment term
Letter of credit
Telegraphic transfer
Western Union
-
Payment Methods
We accept:
